OCTG Explained: Casing, Tubing, Drill Pipe and Grades

OCTG stands for Oil Country Tubular Goods: drill pipe, casing and tubing. What the grades mean, why line pipe is excluded, and why connections fail before pipe bodies do.

OCTG stands for Oil Country Tubular Goods. It is the collective name for the three families of steel pipe used to drill and complete a well: drill pipe, casing and tubing. The term covers the pipe, its connections and its accessories. Line pipe, which moves product after the well is producing, is not OCTG.

At a glance

Question	Short answer
What does OCTG stand for?	Oil Country Tubular Goods
What does it include?	Drill pipe, casing, tubing, plus couplings, pup joints and accessories
What does it exclude?	Line pipe, flowlines and surface piping
Which standards apply?	API 5CT for casing and tubing, API 5DP for drill pipe
What does the grade number mean?	Minimum yield strength in thousands of pounds per square inch
Where does it usually fail?	At the connection, not in the pipe body

The three families

OCTG is a purchasing and standards category rather than a single product. Three families sit inside it, and they do different jobs at different points in the life of a well.

Family	Job	Stays in the well?
Drill pipe	Transmits rotation and drilling fluid to the bit while the hole is being made	No. It is tripped in and out, run after run
Casing	Lines the drilled hole, isolates formations and supports the wellbore	Yes, and it is cemented in place
Tubing	Carries produced oil or gas from the reservoir to surface	Yes, though it can be pulled and replaced

The distinction matters commercially. Drill pipe is an asset that is used, inspected, repaired and used again, so its owner cares about fatigue life and connection condition. Casing is bought, run once and left in the ground, so its owner cares about getting it there undamaged. Tubing sits somewhere between the two.

The category also covers OCTG accessories, and they are easy to forget when a shop is being equipped. Couplings join two lengths of casing or tubing and are usually made up at a threading shop rather than on the rig. Pup joints are short lengths used to adjust string length. Crossovers connect one connection type or size to another. All three are threaded items that have to be made up under controlled torque, and all three arrive in a workshop expecting the same treatment as full-length pipe.

One clarification that catches people out: line pipe is not OCTG. Line pipe carries product across the surface and is covered by a different specification. If a supplier quotes line pipe against an OCTG enquiry, the standards, the inspection regime and the connections are all different.

What the grade number actually tells you

OCTG grades look cryptic until you know the rule: the number is the minimum yield strength in thousands of pounds per square inch. P110 has a minimum yield of 110,000 psi. J55 has 55,000 psi. The letter carries the rest of the story, mostly about chemistry and heat treatment.

Grade	Minimum yield (ksi)	Where it is typically used
H40	40	Shallow casing, low-pressure service
J55 / K55	55	Common casing and tubing; K55 carries higher minimum tensile
N80	80	General-purpose casing and tubing
L80	80	Sour service; hardness is controlled, not just strength
C90 / T95	90 / 95	Sour service at higher strength
P110	110	Deeper wells and higher pressures
Q125	125	The deepest and hottest applications

Two grades with the same number are not interchangeable. N80 and L80 both yield at 80 ksi, but L80 is hardness-controlled for service in hydrogen sulphide environments, where a harder steel can crack. Substituting one for the other because the strength matches is a well-integrity decision dressed up as a procurement decision.

Reading an OCTG size and weight specification

An OCTG line item usually looks like a string of numbers with no explanation attached. Each term is doing a specific job, and one of them is routinely misread.

Term	What it means	Why it matters
Outside diameter	The nominal OD of the pipe body, in inches	Sets what will fit in the hole and what the equipment has to grip
Nominal weight	Pounds per foot, including an allowance for the coupling	It is the shorthand for wall thickness, not a shipping figure
Wall thickness	The actual wall, in inches	Drives collapse and burst ratings
Drift diameter	The guaranteed bore a drift mandrel will pass	The number that decides whether your tools go through
Range length	R1, R2 or R3 length band	Affects racking, transport and handling equipment

Drift diameter is the one that gets skipped. Inside diameter is a nominal figure calculated from OD and wall; drift is the smaller, guaranteed value that a standard mandrel has physically passed through. If a tool has to run inside the string, drift is the number to design against, and a quotation that omits it has left out the useful part.

Range lengths matter to anyone with a workshop rather than a rig. API groups casing into three bands, roughly 16 to 25 feet for Range 1, 25 to 34 feet for Range 2 and 34 to 48 feet for Range 3. A shop laid out for Range 2 does not automatically handle Range 3, and that constraint shows up in the racking and the floor space long before it shows up in the machine.

Seamless or welded

OCTG is made two ways. Seamless pipe is pierced and rolled from a solid billet with no longitudinal join. Welded pipe, usually electric resistance welded, is formed from strip and joined along a seam. Both are recognised routes under the relevant API specification, and both are used at scale.

Consideration	Seamless	Welded
Cost	Higher	Lower, often noticeably so
Dimensional consistency	More variation in wall	Very consistent wall from strip
High grades and sour service	Commonly specified	Often restricted by the buyer’s own spec
Availability at short notice	Depends on mill schedule	Usually easier

The argument between the two is older than most people working in it, and for routine service the honest answer is that a well-made welded joint and a seamless joint both do the job. The decision usually comes down to what the operator’s own specification permits rather than what the metallurgy allows.

Where OCTG actually fails

Most published explanations of OCTG are written from the mill’s side. They cover steelmaking route, grade chemistry, wall thickness tolerance and tonnage. All of that is real, and almost none of it is what goes wrong.

Pipe body failures are rare. Connection failures are not. A string is a chain of threaded joints, and every one of them was made up by someone, somewhere, under some amount of torque, with some amount of thread compound, after being handled by a crane and stored in a yard. That is where the variability lives, and it is why a shop that touches OCTG cares more about the last thirty seconds of each make-up than about the mill certificate.

Failure mode	Where it starts	What catches it
Galling on the thread flanks	Contamination, wrong compound, or misalignment at stab	An abnormal torque signature during make-up
Over-torque	Uncontrolled tong or an unverified torque setting	A recorded final torque against the connection’s own limits
Under-torque	Stopping short of the shoulder	A make-up curve that never shows the shoulder rise
Handling damage	Dropped protectors, yard storage, crane slings	Receiving inspection before the pipe reaches the machine
Wrong grade in the rack	Mixed lots, illegible stencils	Traceability from heat number to joint number

Three of those five are only visible while the connection is being made up. That is the practical argument for controlled, recorded make-up rather than a tong and an experienced ear, and it is covered in more depth in torque monitoring for OCTG pipes and in the guide to what causes galling on premium connections.

Connections: the part the grade does not cover

Two joints of identical grade and weight can have completely different connections, and the connection decides how the string behaves under pressure and bending.

• API connections: short round thread, long round thread and buttress. The seal is made by the threads themselves working with thread compound.
• Premium and semi-premium connections: proprietary designs that add a metal-to-metal seal and a torque shoulder, so sealing no longer depends on the compound filling the thread helix.

Premium connections are specified for gas wells, deviated wells, sour service and anything where a leak path is unacceptable. They are also far less forgiving during make-up. The metal-to-metal seal is a finely machined surface, and it only takes one hard contact at stab to ruin it, which is why controlled coupling make-up matters more as the connection gets more expensive.

When the grade is not the deciding factor

Grade dominates OCTG conversations because it is the easiest thing to compare on a quotation. It is often not the thing that decides the outcome.

Situation	What is actually deciding it	Where to look first
Repeated leaks on a new string	Connection selection or make-up control	The make-up records, joint by joint
Rejects rising at the threading shop	Handling and storage between operations	Handling and storage practice
Sour service cracking	Hardness control, not yield strength	The grade’s hardness limits and the mill certificate
Pipe arriving already damaged	Transport, protectors and receiving discipline	Receiving inspection before make-up
Audit failure on a delivered batch	Traceability, not metallurgy	Whether each joint has a record that can be produced

A higher grade fixes none of those five. Buying P110 to solve a problem caused by handling produces expensive pipe with the same problem.

The chain OCTG passes through

Between the mill and the well, OCTG changes hands several times. Each handover is an opportunity to add damage and a chance to catch it.

1. Mill: pipe is rolled, heat treated, tested and stencilled with heat and grade.

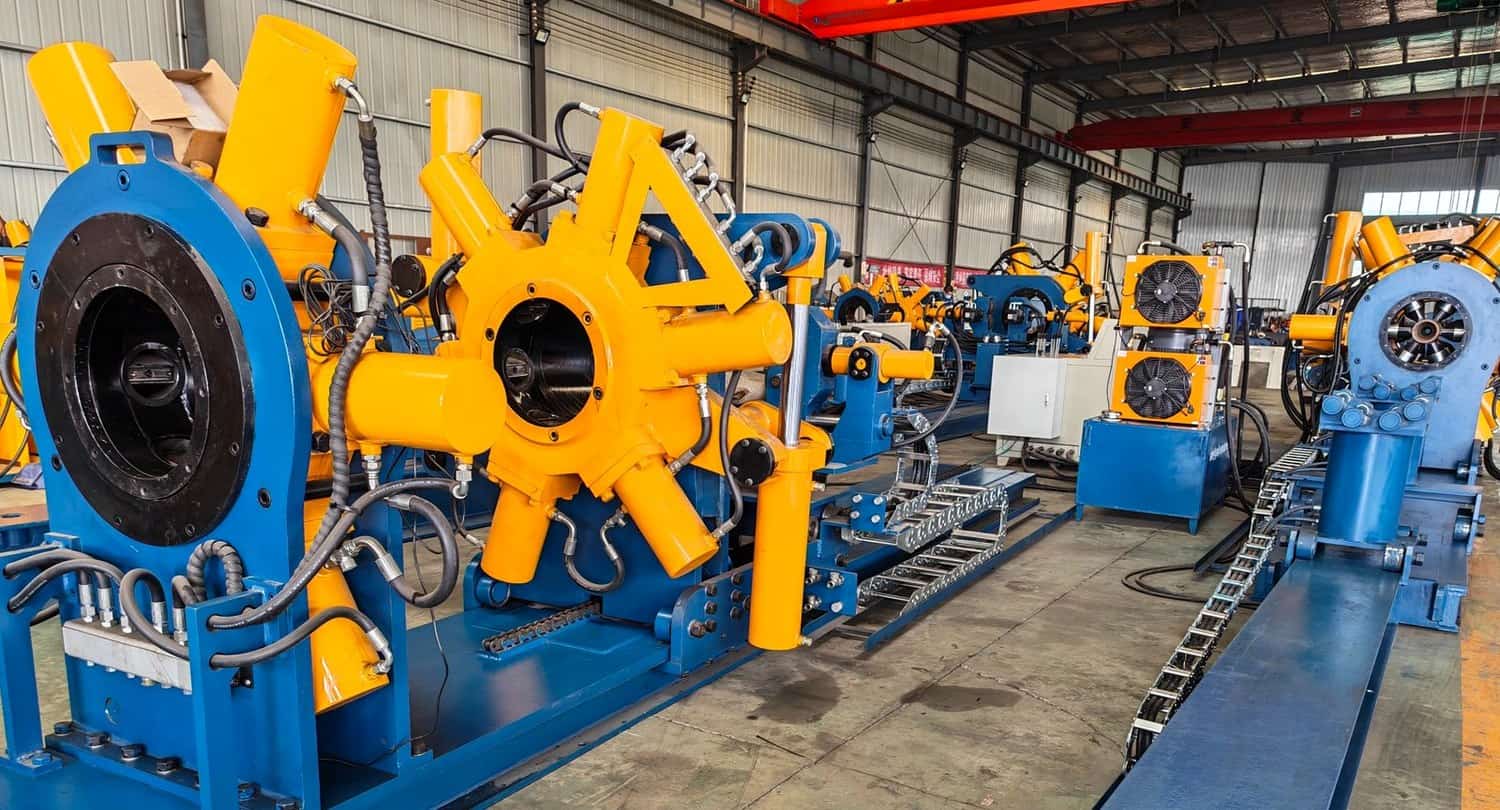

2. Threading shop: connections are cut, gauged and, for couplings, made up to a controlled torque.
3. Storage and transport: protectors on, racked, shipped, often more than once.
4. Receiving yard or service centre: inspected on arrival, cleaned, sometimes re-doped and re-protected.
5. Rig or workshop: made up into a string, with the make-up recorded if the operation is run properly.

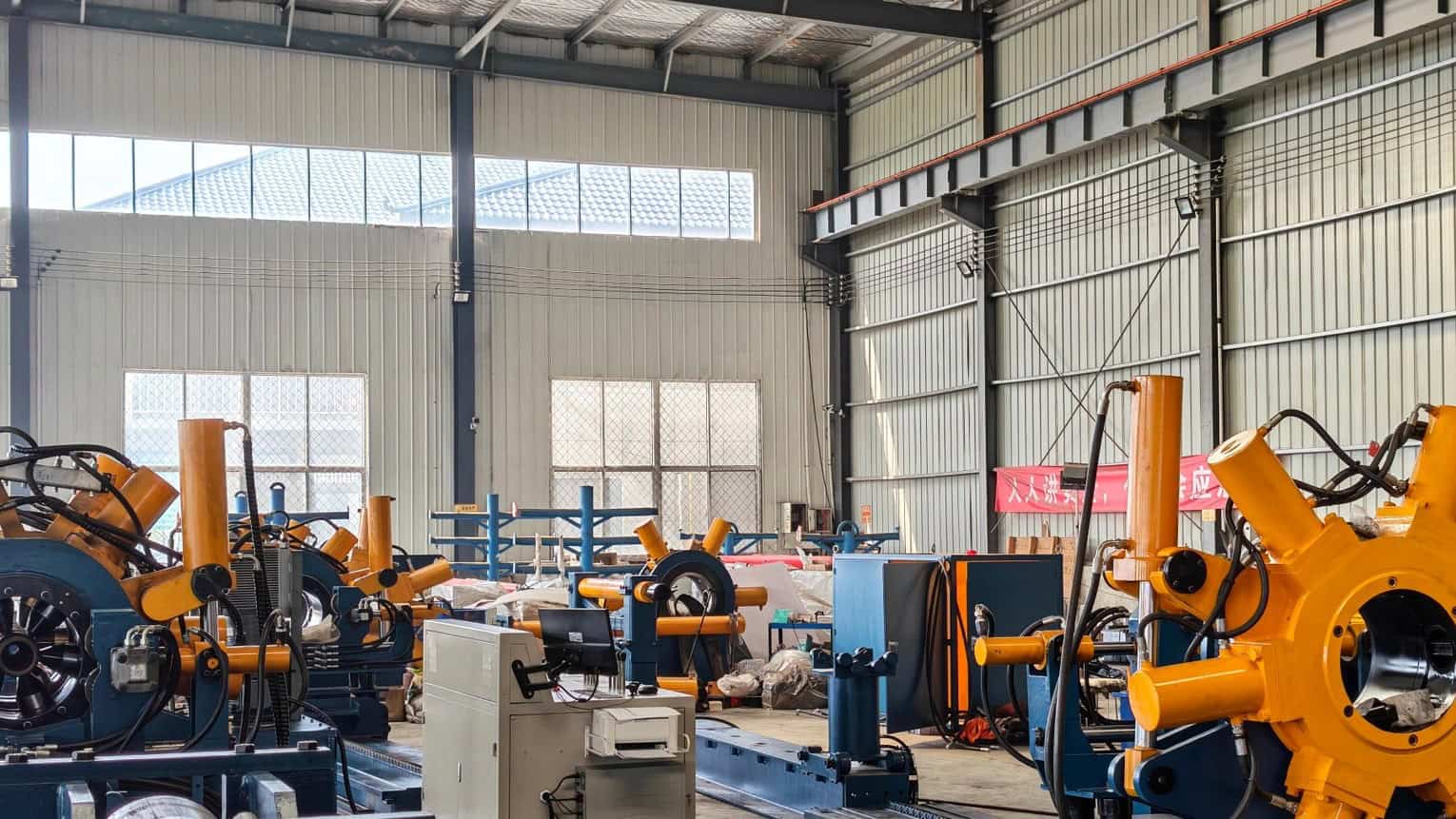

Steps two and four are where a workshop’s equipment decides the outcome. The tooling that supports them is covered in pipe handling equipment for OCTG workshops, and the record-keeping side in OCTG quality assurance records for mill audits.

Checklist for anyone buying or handling OCTG

• Confirm the specification, not just the grade: API 5CT for casing and tubing, API 5DP for drill pipe.
• Check that the grade suits the service, including hardness limits where hydrogen sulphide is present.
• Agree the connection type in writing. “Premium” is a category, not a specification.
• Ask how couplings were made up and whether the torque was recorded.
• Require traceability from heat number through to joint number.
• Inspect on receipt, before the pipe joins good stock.
• Keep protectors on until the joint is at the machine, and put them back afterwards.
• Store off the ground, supported, and sloped so water drains away from the threads.

Proof and documentation

The paperwork that follows OCTG is not administrative overhead. It is the only thing that survives once the pipe is in the ground and nobody can look at it again.

A mill certificate covers the pipe as it left the mill. It says nothing about what happened during threading, transport or make-up. That second half of the story has to be created by whoever handles the pipe, which in practice means a make-up record per joint: the torque reached, the shape of the curve, the operator, the date and the joint identity. Shops that produce those records pass audits. Shops that rely on memory produce arguments.

Galip builds the make-up equipment that produces that record, and the checks that go with it are set out in OCTG connection integrity after the mill. For the standards themselves, the American Petroleum Institute publishes the specifications referenced throughout this article.

Frequently asked questions

What is the full form of OCTG?

Oil Country Tubular Goods. The phrase dates from the era when “oil country” meant the producing regions, and it has stuck as the industry’s collective term for well tubulars.

Is casing OCTG, or is OCTG something separate?

Casing is one of the three families inside OCTG, along with tubing and drill pipe. Asking for “OCTG or casing” is like asking for vehicles or vans.

What is the difference between casing and tubing?

Casing lines and supports the drilled hole and is normally cemented in place permanently. Tubing sits inside the casing and carries produced fluid to surface, and it can be pulled and replaced during the well’s life.

Is line pipe part of OCTG?

No. Line pipe transports product at surface and falls under a separate specification. It is a common mix-up in enquiries, and it changes which standard, inspection regime and connection type apply.

What does the number in an OCTG grade mean?

Minimum yield strength in thousands of pounds per square inch. N80 yields at a minimum of 80,000 psi. The letter indicates the grade family, including whether hardness is controlled for sour service.

Why do OCTG connections matter more than the pipe body?

The pipe body is a controlled mill product with a certificate. Each connection is assembled in the field or the shop under conditions that vary. Most leaks and most rejected joints trace back to that assembly rather than to the steel.

Do I need a premium connection?

It depends on the service. Gas, sour conditions, high pressure and deviated wells usually justify one. For straightforward low-pressure casing, an API connection made up correctly is often the better value, because a premium connection made up badly performs worse than a simple one made up well.

What records should come with an OCTG batch?

Mill certificate with heat number and grade, connection details, gauging results where applicable, and make-up records for any coupling installed by the supplier. If make-up records are absent, that part of the pipe’s history is unverifiable.

What is drift diameter, and why is it not the same as ID?

Inside diameter is calculated from OD and wall thickness. Drift diameter is the smaller, guaranteed bore that a standard mandrel has actually been passed through. Design tool clearances against drift, never against nominal ID.

Specifying make-up equipment for an OCTG shop

If the reason you are reading about OCTG is that a shop needs to make up or break out connections properly, the fastest route to a useful quotation is to send the job envelope rather than a model number:

• OD range you need to cover, smallest and largest
• Make-up and break-out torque required
• Connection families handled, API, premium or both
• Surface and jaw type, including any coated or chrome material
• Daily workload and shift pattern
• Report format your customers or auditors expect
• Workshop layout and the power available

That set of answers is enough to size a bucking unit and to say what it will and will not do, without a discovery call first.

The connection types themselves, and why a buttress thread holds far more tension than a round thread, are covered separately with cross-section drawings.

Short checklist

• OCTG means drill pipe, casing and tubing, plus their connections and accessories
• Line pipe is outside the category
• The grade number is minimum yield strength in ksi; the letter carries the rest
• Same number does not mean interchangeable, particularly in sour service
• Connections fail far more often than pipe bodies do
• Damage is added at handovers, so inspect on receipt
• A mill certificate covers half the story; make-up records cover the other half
