Trenchless Equipment
Used HDD machine listings, trenchless tooling packages, and support equipment for contractors planning their next bore.
Used HDD Machines Plus Complete Trenchless Support
Review available used HDD rigs alongside the tooling, mud support, and trenchless accessories needed to build a practical package around the job.
Trenchless HDD Equipment Specifications
Heavy-duty rigs and comprehensive tooling packages for underground utility installation. Custom packages are available to match project scope and soil conditions.
Detailed Technical Specifications
| Max Pullback ForceCustomizable | Up to 500,000 lbs (2,224 kN) |
|---|---|
| Max TorqueCustomizable | Up to 50,000 ft-lbs (67.8 kN.m) |
| Drilling LengthCustomizable | Up to 3,000 ft (914 m) |
| Pipe Diameter RangeCustomizable | 2" to 48" OD depending on soil conditions |
| Entry Angle | 8 to 20 degrees adjustable |
| Rod SizeCustomizable | 2 3/8" to 6 5/8" drill pipe |
| Engine TypeCustomizable | Diesel, Tier 4 Final emissions compliant |
|---|---|
| Engine PowerCustomizable | 200 - 750 HP depending on rig size |
| Hydraulic Pressure | Up to 5,000 PSI (345 bar) |
| Mud Pump CapacityCustomizable | 300 - 800 GPM (1,136 - 3,028 LPM) |
| Mud Pump PressureCustomizable | Up to 1,200 PSI (83 bar) |
| Operator Cabin | Climate-controlled, ergonomic design |
|---|---|
| Control System | Digital proportional joystick controls |
| Data Display | Real-time drilling parameters on LCD screen |
| Rod LoaderOptional | Automated rod handling system |
| Locating System | Compatible with all major locating systems |
| Safety Features | Emergency stop, pressure relief, and load limiting |
| Drill HeadsCustomizable | Pilot bits, tri-cone bits, PDC bits available |
|---|---|
| ReamersCustomizable | Barrel reamers, wing reamers, hole openers |
| Swivels | High-capacity rotating swivels with dual seals |
| Drill Pipe | High-strength alloy steel, API spec |
| Mud Mixing SystemOptional | Bentonite mixing and recirculation package |
| Support EquipmentCustomizable | Pipe trailers, locator sets, wellhead adapters |
Used-Machine Evaluation Priorities
Cost, due diligence, and commercial evaluation points help buyers compare used rigs more confidently.
How Much Can You Save?
A second-hand HDD machine can often reduce capital cost by roughly 20% to 50% or more versus a comparable new rig, depending on age, condition, and model.
Benefits of Buying Used
Cost savings, lower depreciation, immediate availability, tested performance, and a longer service life for existing equipment all factor into the buying decision.
What Buyers Should Check
Inspection, machine history, warranty coverage, spare-parts availability, legal compliance, compatibility, and resale value are practical decision filters before purchase.
Why These Factors Matter
Those checks help confirm machine quality, avoid legal problems, match the rig to the application, and protect long-term asset value before purchase.
Rig Packages, Tooling & Jobsite Readiness
This section covers the tooling, site conditions, and support systems that shape a complete trenchless package.
Rig Power, Pullback and Bore Planning
Rig selection starts with the bore path, product pipe, and ground conditions. Pullback force, torque, mud flow, and rod handling all need to be matched to the job rather than treated as isolated catalog numbers.
A properly sized HDD package reduces rod-handling downtime, keeps mud circulation stable, and gives the operator enough reserve force for difficult exits and pullbacks.
Tooling Packages for Changing Ground Conditions
Reamers, drill heads, swivels, pipe, and mud systems all affect bore quality and production speed. A complete trenchless package should be assembled around the utility size, expected geology, and the crew’s preferred workflow in the field.
Pilot bits, reamers, and hole-openers can be mixed to support staged enlargement strategies.
Mud circulation and spoil management are critical on longer crossings and in unstable ground.
Support gear such as pipe trailers and locating systems keeps the jobsite moving once drilling starts.
Current Used HDD Machine Listings
Review the current used XCMG rig listings together with the supporting package details buyers typically request during commercial evaluation.

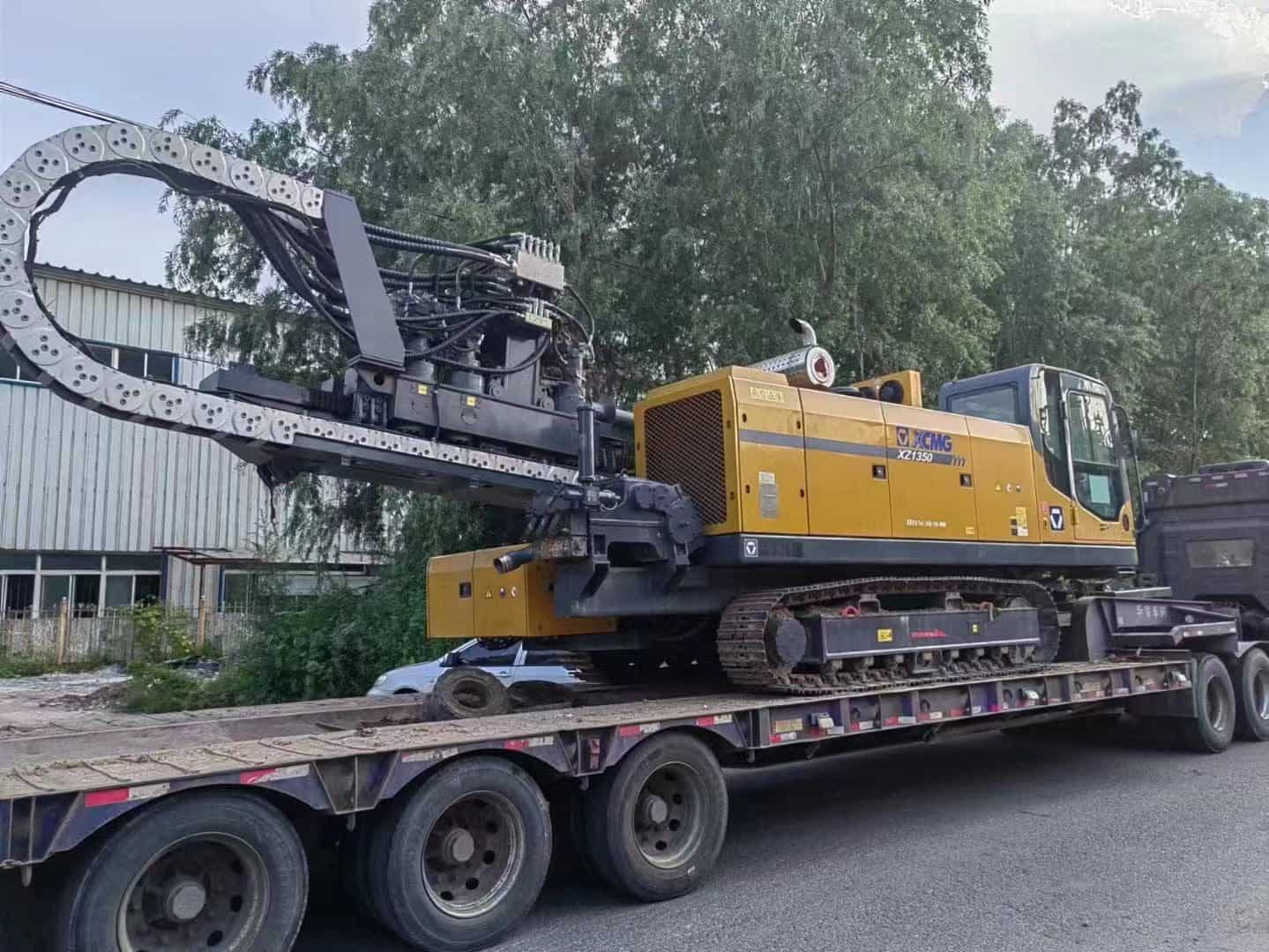

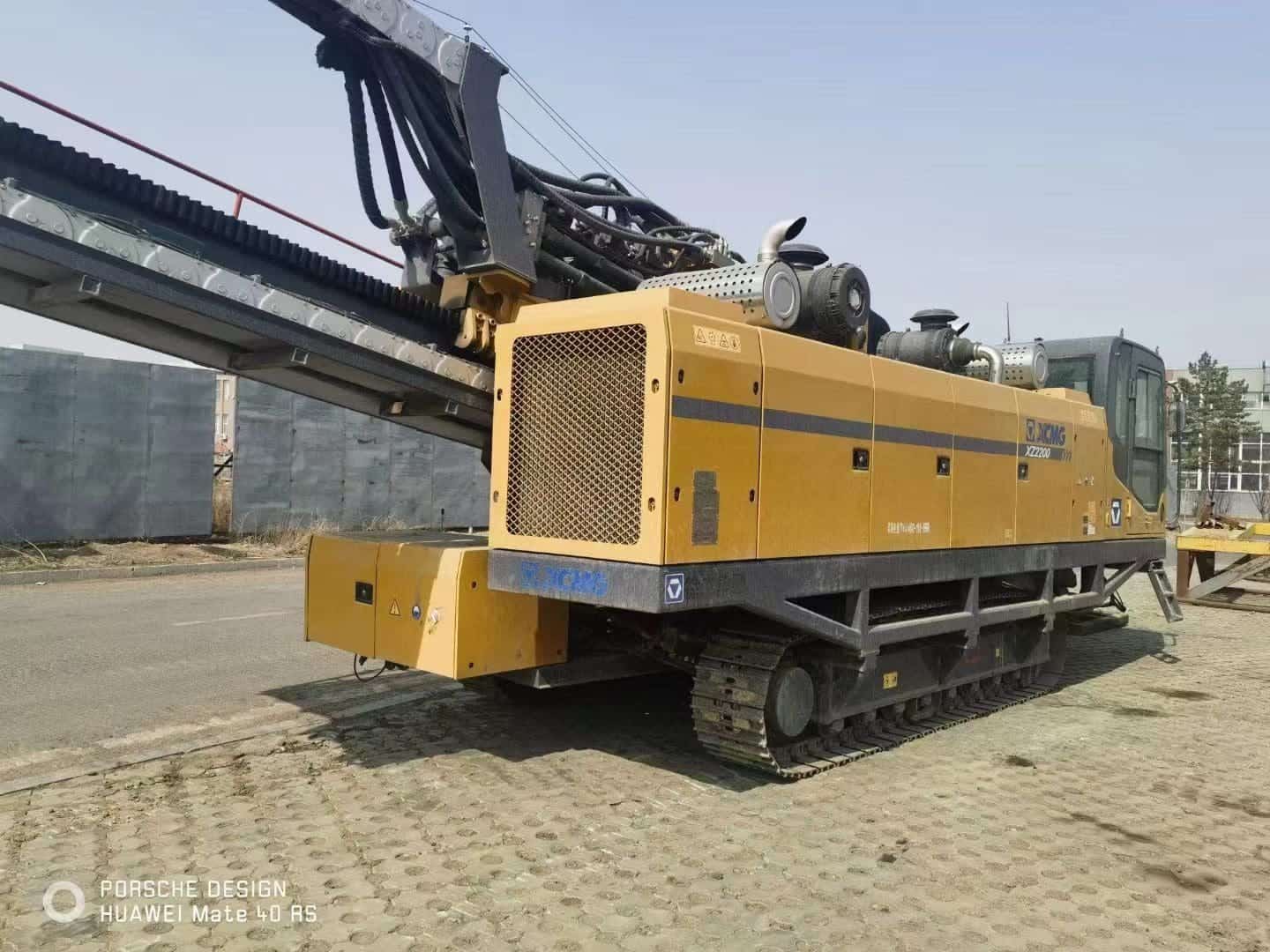

USED XCMG XZ2200 HDD Machine
This large-format XCMG rig is presented with its supporting equipment so buyers can evaluate both thrust class and included mud support at a glance.
Model: XCMG XZ2200.
Tonnage: 220 tons; weight: 31000kg.
Drill rods: 150 pieces; max back reamer diameter: 1500mm.
External pump: 1500; mud tank capacity: 20 cubic meters; shale shaker: unused.
USED XCMG XZ450OPLUS HDD Machine
This mid-size used rig is framed as a ready-to-review package with included rods and support accessories already called out in the commercial scope.
Model: XCMG XZ450OPLUS.
Drill rods: 100 pieces of 89mm rods; max back reamer diameter: 900mm.
Drill bit: included.
Power divider: included.
USED XCMG 1350 HDD Machine
This nearly new machine is presented as a higher-capacity used option for crews that need more bore potential without moving to a brand-new purchase.
Model: XCMG 1350.
Drill rods: 100 pieces of 114mm rods.
Max back reamer diameter: ranging from 500 to 1350.
Guided drill bit and power divider: included.
Buyer Questions
Used HDD Machine Buyer Q&A
Used HDD machine buyers need more than a price list. They need confidence in machine condition, package completeness, trenchless job fit, and whether the rig will still make commercial sense once the bore actually starts.
What should buyers check first when comparing used HDD machines?
Start with the bore profile, pullback requirement, rod package, mud system, and the machine's real service condition. A used rig only creates value when its current capability still matches the projects you actually need to win and deliver.
Why is the supporting trenchless package almost as important as the base rig?
Because reamers, drill heads, swivels, rods, locating support, and mud handling all affect bore quality and production speed. Buyers who want context can review how sediment and sand risk change HDD tool decisions, how mud-motor drilling supports faster trenchless production, and what a stronger HDD mud-motor package contributes on difficult bores.
Can Galip help buyers evaluate the package around a specific job or crossing?
Yes. The practical review usually covers thrust class, torque reserve, tooling scope, expected geology, and whether the package leaves enough margin for difficult exits, pullback loads, and mud circulation demands.
What details should I send before asking for availability and pricing?
Send the target utility size, bore length, expected ground conditions, required pullback class, and whether you need a basic machine or a broader package with rods, mud support, and accessories. That shortens the path to a usable commercial reply.
Request a Quote
Tell us about your requirements and our engineering team will prepare a detailed proposal with specifications, pricing, and delivery timeline.
Send your inquiry
Share your product type, operating conditions, quantity, and timing so our team can prepare a practical quote or next-step recommendation.
