Mud Motors for Drilling Components and 9 Machining Processes

Table of Contents

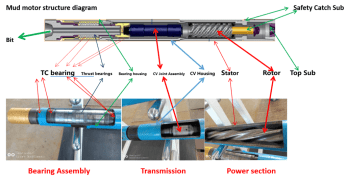

Components of Mud Motors for Drilling

A Dump Sub:

A Hydraulically Actuated Valve that may or may not be integrated with the mud motors for drilling and may or may not be designed for a float bore.

Functions by opening and permitting drilling fluids into the wellbore when the pumps are off. Conversely, it lets the drilling fluid pass through the mud motors for drilling when the pumps are on.

Allows the drilling fluid to travel to the drill string while descending into the hole, thereby preventing potential pressure problems. Additionally, it lets the drill string drain into the wellbore while being pulled out.

Positioned at the top of the mud motors for drilling.


A Top Sub:

Primarily a cross-over sub typically placed on the top of the mud motors for drilling setup in lieu of a dump sub configuration. It is often designed for a float bore.


A Rotor Catch Assembly:

Facilitates the removal of the rotor should the mud motors for drilling disassemble down the hole beneath the stator.

Typically screwed into the rotor and positioned above the power section.


A Power Section Assembly:

Comprises a stator and rotor duo that allows the mud motors for drilling to transform Hydraulic energy (flow rate and pressure) into Mechanical Energy (rpm and torque).

The rotor operates by rotating within the stator elastomer when fluid is pumped through the stator, thereby creating pressure seals and cavities. This results in differential pressure across the cavities, making the rotor rotate.

The speed and torque of a mud motor (power section) depend on the number of lobes on both the rotor and stator as well as the helix length. The more lobes on the rotor, the greater the torque. Conversely, the fewer lobes on the stator, the higher the RPM.


A Transmission Unit:

This unit lets the mud motors for drilling change the eccentric rotation of the rotor into a concentric rotation for the drive shaft. The transmission unit comprises a flexible drive shaft and is also known as a CV joint or coupling shaft with drive joints at both ends.

A Bearing Assembly

The bearing assembly mainly includes the Thrust and Radial components (upper and lower).

A designed bearing section paired with a flow restrictor will generally divert 4% to 10% of the fluid to the shaft and bearing for lubrication and cooling.


Manufacturing Processes of Mud Motors for Drilling

mud motors for drilling
mud motors for drilling
mud motors for drilling
Step ONE: Housing Material Processing


The manufacturing process of the stator housing, which is made of 42CrMo material, begins with hot rolling. After this stage, it undergoes quenching and tempering to enhance its mechanical properties. Post these treatments, the stator housing is straightened to ensure proper alignment. Subsequently, it is subjected to machining for precise dimensions and shapes. Once machining is completed, glue is injected into the housing for added strength and durability. A pressure test is then conducted in conjunction with the rotor to ensure its robustness and leak-proof nature. Finally, thread processing is carried out to facilitate assembly and integration into the final product.

mud motors for drilling
mud motors for drilling
Step TWO: Rotor Material Processing


Manufacturing of the rotor begins with selecting and heat treating an appropriate blank material, followed by straightening to ensure its alignment and form. Straightened rotors then move to the machine plus stage for preliminary shaping and CNC spiral milling to achieve intricate designs and patterns. Finally, they undergo polishing to smooth their surfaces. To enhance its durability and resistance, the polished rotor is given an additional coating of chrome plating to increase its longevity and resistance. A final round of polishing ensures high-quality finishing; following which the product can be considered complete. As part of quality control measures, both finished rotors must then undergo pressure tests together with their associated stator shell to ensure optimal performance and reliability.

mud motors for drilling
Step THREE: Spindle Material Processing


The spindle is constructed out of 40CrNiMoA material and initially forged to achieve its primary shape and strength. After being forge-forged, it undergoes further processing such as CNC machining for precise dimensions and finish work.

mud motors for drilling
Step FOUR: Bearing Shell Material Processing


The bearing shell consists of five separate parts connected together by a threaded rod. Crafted from 40CrNiMoA material, which is first forged to ensure structure and durability before going through further processing to achieve accurate dimensions and fine-tuning.

mud motors for drilling
mud motors for drilling
Step FIVE: TC Bearing Processing


The TC bearing can be customized and divided into four distinct parts, including an upper inner, an upper outer, lower inner, and a lower outer component made from tungsten carbide and YG alloy strips. Manufacturing process of the TC bearing includes sintering followed by grinding to achieve precision and quality, with its primary purpose of supporting radial force bearing. When assembled there should be a 20-30 wire gap between components. It is essential that the secondary part of bearings remain submerged or covered by mud to provide both lubrication and cooling of their bearings. Over time as users use their bearings, leakage of water may increase leading to leakage gaps which result in increased friction that ultim

mud motors for drilling
Step SIX: Thrust Bearing Processing


A thrust bearing serves two essential purposes. First, it converts irregular or eccentric rotation to concentric or uniform rotation; simultaneously it bears the axial thrust from operations while accommodating any weight on the bit itself.

mud motors for drilling

Before phosphating

mud motors for drilling

After phosphating

Step SEVEN: CV Housing Processing


The CV Housing is designed with a standard angle of 1.75 degrees. This specific angulation enables the mechanism to achieve a tilting motion. Then it will be phosphated.

Step EIGHT: CV Joint Assembly Processing


The CV Joint Assembly plays an essential role in mitigating both axial and radial vibrations, helping ensure the main shaft maintains consistent and concentric rotation. Its design and functionality ensure the main shaft operates optimally.

mud motors for drilling
Step NINE: Assembling Mud Motors for Drilling


Step NINE involves the integration and assembly of all the previously crafted components to form the complete Mud Motors for Drilling. This phase ensures that each part fits seamlessly, adhering to specifications, and ensuring optimal functionality once the mud motor is in operation.
