Introduction
In drilling and well operations, a single weak link in the tubular string can lead to catastrophic failures. Connection integrity – the soundness of threaded pipe joints – is paramount. Break-out units (which also perform makeup) are not just labor-saving devices; they are guardians of connection integrity. By precisely controlling how connections are tightened and verifying their quality, these machines play a key role in preventing downhole failures such as leaks, breaks, or backed-off joints.
Precision Assembly for Strong Connections

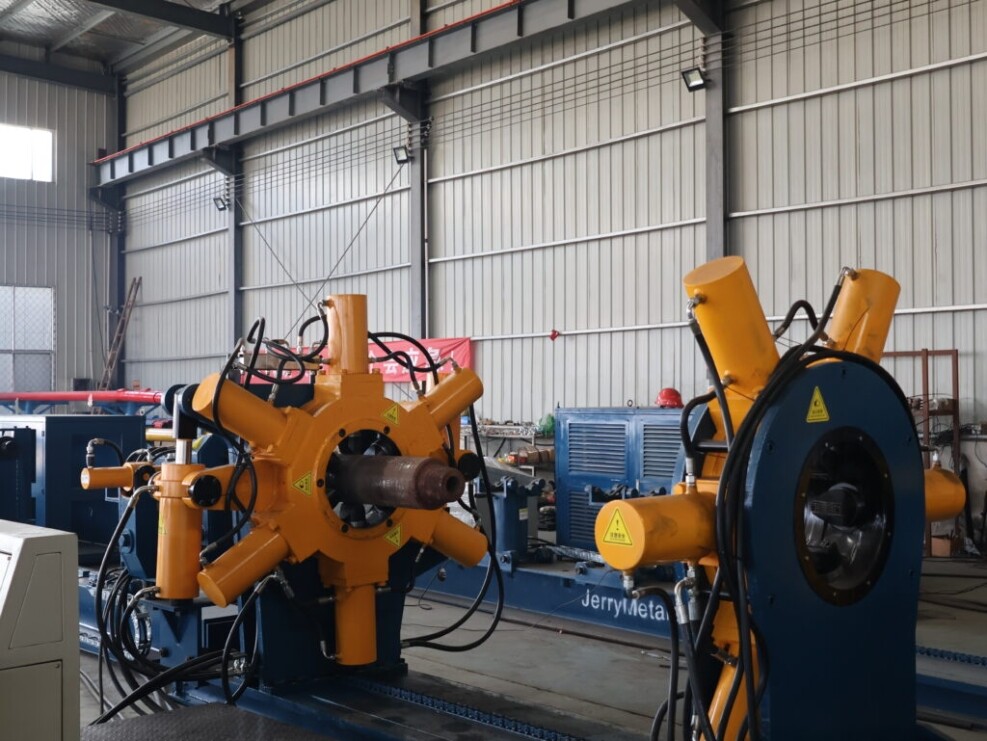

Break-out units ensure that every connection is made up to the exact specifications required by the thread design and engineering plan. This precision is vital for integrity:
- Correct Torque Every Time: Each thread connection has an optimal torque range. Too little torque and the joint may loosen under load; too much and the threads or seals can be damaged. Break-out units apply the correct torque consistently, removing guesswork. Advanced units even verify that makeup torque is within a very tight tolerance (often within a few percent of the target)weatherford.com.
- Proper Thread Engagement: By monitoring the turns of the connection, the unit helps ensure that pin and box threads are fully engaged and shoulder correctly. If a connection takes an unusual number of turns or torque doesn’t build up as expected, the operator can be alerted to a potential problem (such as cross-threading or wrong thread type) before the assembly goes into service.
- Uniform Clamping: The use of hydraulic jaws distributes gripping force evenly around the pipe, preventing thread warping or ovalization. This means the pipes aren’t distorted during makeup, preserving their integrity.
When each connection is made under these controlled conditions, the result is a string of pipe joints that are all made up to standard – greatly reducing the risk of a weak link.
Verification and Quality Checks
Break-out units often come with integrated quality checks that catch issues early:
- Many systems include torque-turn monitoring and automatic evaluation. As the connection is made, the machine’s computer evaluates whether the torque rise and number of turns fall within acceptable parameters. If something is off, it can flag the connection as a failure immediatelygalipequipment.com. This immediate feedback prevents a compromised connection from going into the well.

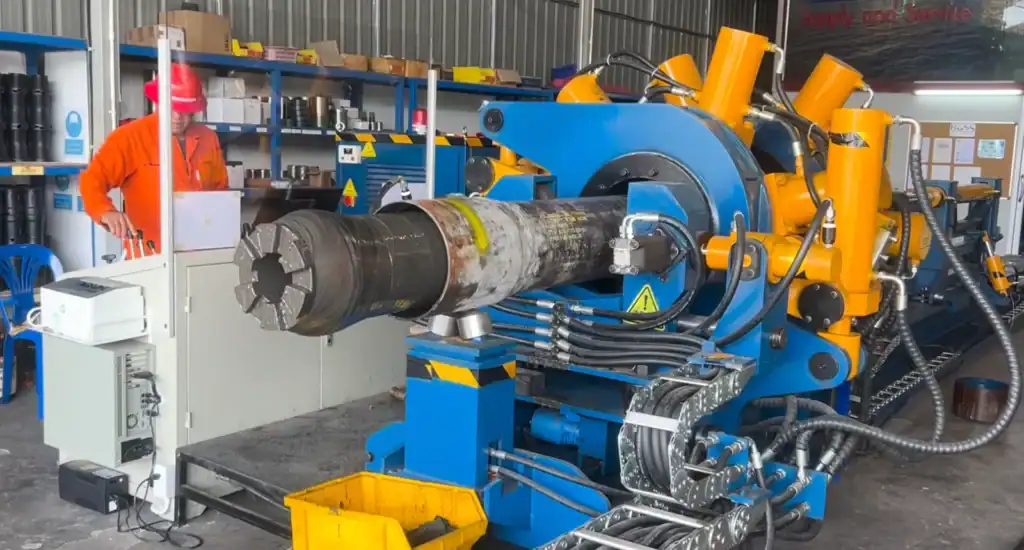

- Some high-end units can perform a diagnostic spin or test on a connection to verify it holds torque. For example, they might apply the full torque and then check if any relaxation occurs, or they can perform a break-out test to ensure the threads were properly engaged.
- Data logging provides an audit trail. If a connection later fails in service, engineers can review the makeup data recorded by the bucking unit to identify whether it was made correctly or if any anomalies were present.
By catching problems at the surface, break-out units prevent those problems from manifesting as costly downhole failures.
Preventing Common Connection Failures
Using break-out units helps avoid several common connection-related failures:
- Backed-Off Connections: A joint that unscrews downhole can cause a string to part. By torquing each connection to its specified value and verifying it (some systems ensure makeup within 2% of target torqueweatherford.com), the likelihood of a connection backing off during operations is minimized. As one drilling equipment provider notes, automated units minimize the possibility of a connection backing off downhole by ensuring proper torque on every jointnov.com.

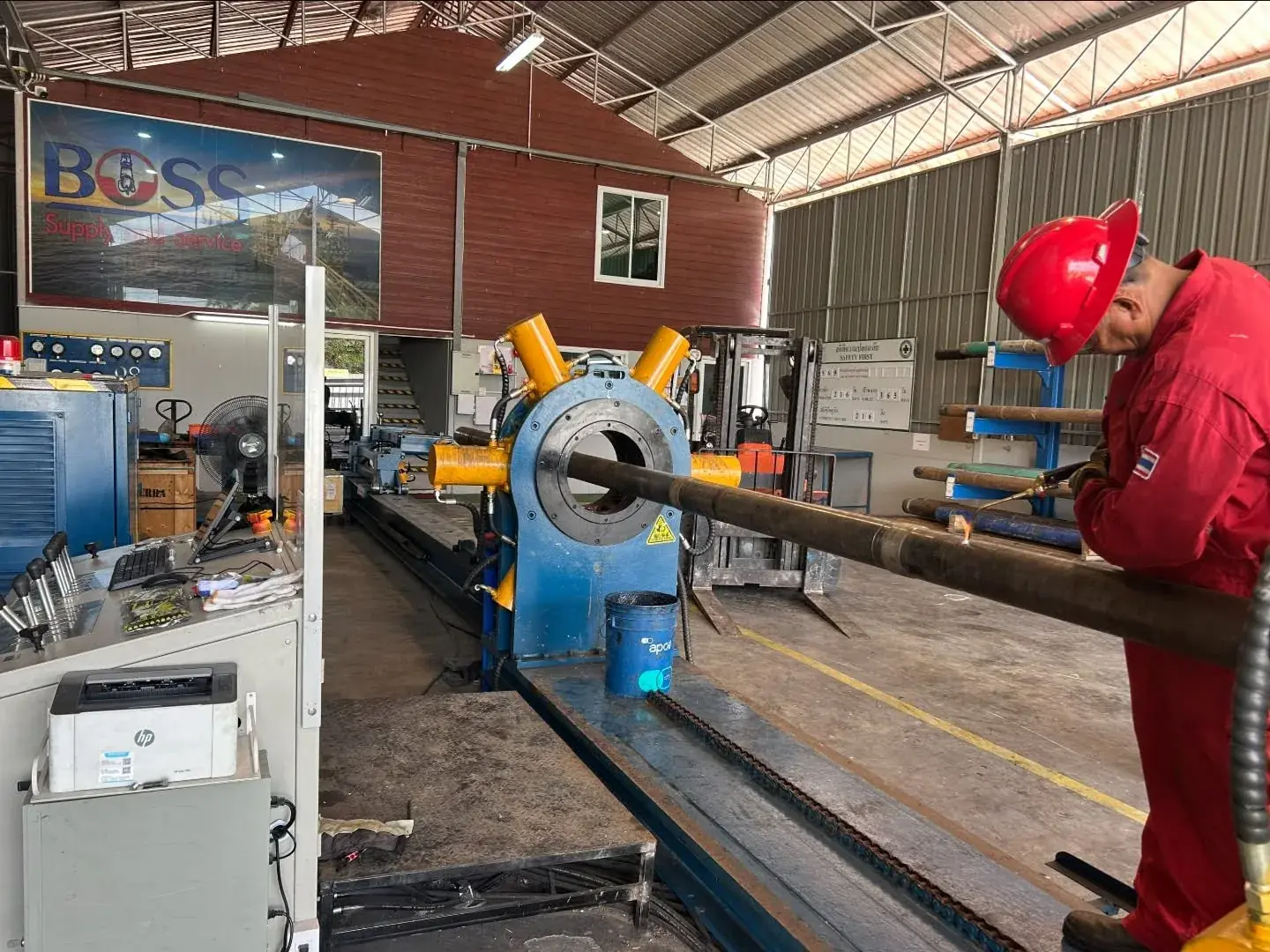

- Leaks in Tubing or Casing: In completions, if a connection isn’t tight or is damaged during makeup, it could leak gas or fluid under pressure. Precise makeup and careful handling by the machine protects threads and seals. Additionally, specialized non-marking dies are available for bucking units to avoid scratching high-end tubulars, preventing stress-corrosion cracks in expensive alloy pipesweatherford.com.
- Connection Breakage: Over-torquing or improper makeup can actually crack a coupling or the pin end of a tool joint. The controlled application of force by the break-out unit ensures that connections are tightened firmly but not excessively, preserving their mechanical integrity.
Conclusion
By providing both muscle and meticulous control, break-out units serve as an insurance policy for connection integrity. They make sure each pipe joint in a string is assembled correctly and verified before going downhole. In doing so, these machines significantly reduce the risk of failures like unscrewing connections or leaks that can derail operations. In the high-stakes environment of oil and gas, such assurance is invaluable – protecting both the equipment and the success of the well.
