Introduction

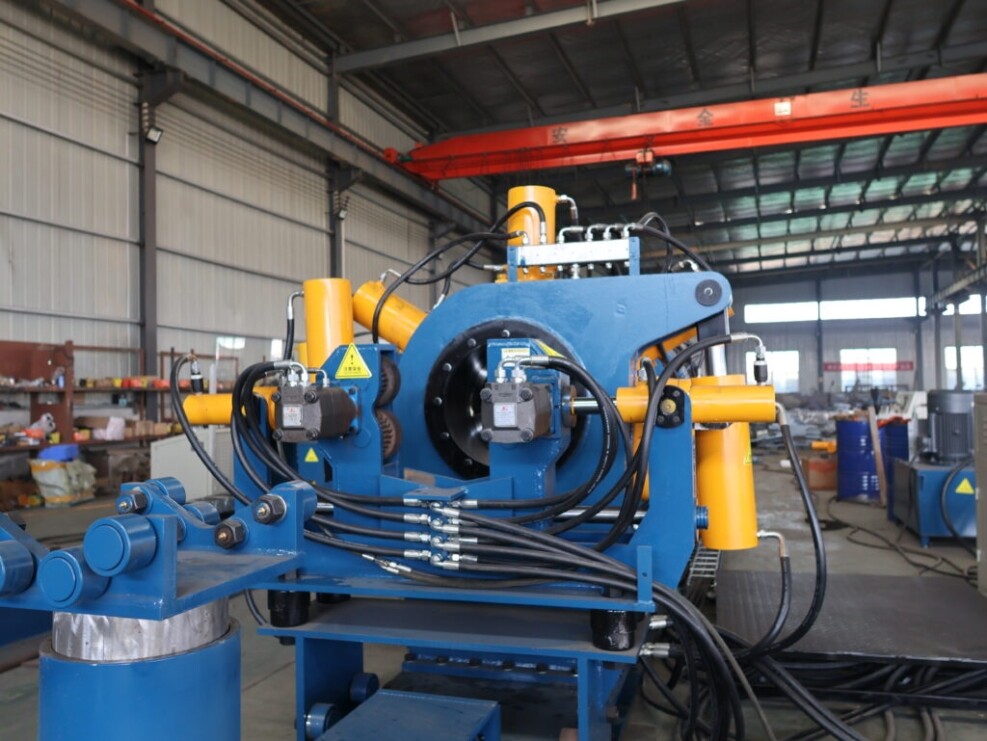

Break-out units, also known as make/break machines, are specialized devices used to assemble and disassemble threaded pipe connections in oilfield operations. By applying controlled torque to make up or break out tool joints, they replace manual tongs and wrenches with an automated solution. This not only speeds up the process but also greatly reduces the physical strain and safety risks for workers on the rig.
Safety Improvements
One of the biggest advantages of using break-out units is enhanced safety. These machines allow critical connections to be handled by a single operator from a safe control station, minimizing the number of personnel exposed to hazardous areas
weatherford.com. By automating the makeup and breakout process, the unit ensures consistent procedures and reduces the chance of human error or injury. The controlled grip and torque application also prevent slippage and accidents that can occur with manual methods.
Efficiency and Time Savings
Break-out units significantly improve operational efficiency. They enable offline makeup and breakout of drill pipes and bottomhole assemblies, which means much of the connection work can be done before or outside of actual rig operations
weatherford.com. This reduces critical path time on the rig, allowing the drilling team to spend more time on actual drilling. These units apply high torque quickly and precisely, often completing connections in a fraction of the time it would take with manual tools. For example, some breakout machines can spin and torque connections at up to 100 RPM, dramatically cutting down connection time
galipequipment.com. Faster, reliable makeup and break-out directly translate to less non-productive time and lower operational costs.
Key Features and Benefits
Modern break-out units come packed with features that boost performance:
- High Torque Capacity: Capable of delivering very high torque (often over 100,000 ft-lb) to handle large drill pipes and casings
galipequipment.com, ensuring even the toughest connections can be broken or made securely. - Precision and Accuracy: Advanced hydraulic and electronic controls apply exact torque and track turns, ensuring each connection is made to specification. This level of accuracy helps maintain well integrity and prevents failures
weatherford.com. - Data Monitoring: Many units include digital torque monitoring and recording systems, providing real-time feedback and logs of each make-up. This data helps verify that every connection is within tolerance and aids in quality control.
- Robust Build: Designed for industrial oilfield environments, break-out units are built to withstand heavy use and harsh conditions, ensuring reliability even under high-stress operations.
The benefits of deploying break-out units are clear. They improve efficiency, ensure accuracy, and enhance safety on drilling sites
galipequipment.com. By handling pipe connections quickly and reliably, these machines reduce wear on equipment and help prevent connection-related mishaps.
Conclusion
Break-out units have become indispensable in the oil and gas industry for streamlining drilling and completion operations. By automating the critical task of making and breaking tubular connections, they keep crews safer and rigs running more efficiently. As drilling programs demand ever greater speed and precision, break-out units provide the reliable performance and control needed to meet those challenges, ultimately helping to maximize drilling uptime and maintain well integrity.
