Torque-turn monitoring systems are specialized digital systems used in oil and gas operations to monitor, record, and control the application of torque and the number of turns during the make-up or break-out of threaded connections. These systems are often integrated with power tongs, bucking units, or other make-up equipment to provide real-time feedback and quality control. In an industry where improper torque or turn count can lead to connection failures, leaks, or costly downtime, such monitoring systems have become essential for ensuring connections meet manufacturer specifications and industry standardssuperiorperformance.com. This article delves into the technical aspects of torque-turn monitoring systems, including their key features, practical use cases, specifications, and best practices for operation, with a focus on oilfield tubular connections.
What Are Torque-Turn Monitoring Systems?
A torque-turn monitoring system (also known as a make-up monitoring system or digital torque/turn control system) is a combination of sensors, hardware, and software designed to track the torque applied to a connection and the number of turns of the pipe or tool joint in real time. The system generates a torque vs. turns graph for each connection made up, allowing operators to visualize the make-up process and verify that it falls within acceptable parameters. Modern systems typically include:
Torque Sensors (Load Cells) – High-precision load cells measure the applied torque. These are usually calibrated to high accuracy (often within 0.1% error) and sample at high frequency (e.g. >3000 Hz) to capture even subtle changessuperiorperformance.com. The sensors are robust and designed for harsh drilling environments (temperature, vibration, etc.), ensuring reliable readings on the rig floor or in a workshop.
Rotation (Turn) Encoders – A rotary encoder tracks the turns (and fractional turns) of the pipe or rotary table. High-resolution encoders (often with pulses per revolution in the tens or hundreds of thousands) provide precise measurement of turns or angular movement. For instance, one system uses an encoder with 262,144 pulses per revolution, equating to ~0.0014° resolution per pulse, which is effectively a 1/1000th of a degree accuracygalipequipment.comgalipequipment.com. This level of precision ensures the turn count (including partial turns beyond shoulder engagement) is accurately recorded.
Data Acquisition and Control Unit – The system includes a controller (which could be a dedicated embedded system or an industrial computer) that interfaces with the sensors. It continuously records torque and turn data and often displays the real-time torque-turn graph on a screen for the operator. The controller can also apply certain logic or safety cutoffs; for example, stopping the hydraulic power when the target torque is reached.
Torque Sensors (Load Cells) – High-precision load cells measure the applied torque. These are usually calibrated to high accuracy (often within 0.1% error) and sample at high frequency (e.g. >3000 Hz) to capture even subtle changessuperiorperformance.com. The sensors are robust and designed for harsh drilling environments (temperature, vibration, etc.), ensuring reliable readings on the rig floor or in a workshop.
Rotation (Turn) Encoders – A rotary encoder tracks the turns (and fractional turns) of the pipe or rotary table. High-resolution encoders (often with pulses per revolution in the tens or hundreds of thousands) provide precise measurement of turns or angular movement. For instance, one system uses an encoder with 262,144 pulses per revolution, equating to ~0.0014° resolution per pulse, which is effectively a 1/1000th of a degree accuracygalipequipment.comgalipequipment.com. This level of precision ensures the turn count (including partial turns beyond shoulder engagement) is accurately recorded.
Data Acquisition and Control Unit – The system includes a controller (which could be a dedicated embedded system or an industrial computer) that interfaces with the sensors. It continuously records torque and turn data and often displays the real-time torque-turn graph on a screen for the operator. The controller can also apply certain logic or safety cutoffs; for example, stopping the hydraulic power when the target torque is reached.
Software Interface – User-friendly software allows operators or technicians to input connection specifications and view results. Parameters such as the connection type, minimum and maximum make-up torque, optimum torque, and expected turns can be pre-loaded or selected from a library. During operation, the software shows live readings (torque, turns, rotation speed, clamp pressure, etc.) and plots the torque-turn curve as the connection is being made upmccoyglobal.comsuperiorperformance.com. Alerts or indicators may signal when the shoulder point is reached or if any parameter goes out of range. After make-up, the software stores the results and can generate reports.
Software Interface – User-friendly software allows operators or technicians to input connection specifications and view results. Parameters such as the connection type, minimum and maximum make-up torque, optimum torque, and expected turns can be pre-loaded or selected from a library. During operation, the software shows live readings (torque, turns, rotation speed, clamp pressure, etc.) and plots the torque-turn curve as the connection is being made upmccoyglobal.comsuperiorperformance.com. Alerts or indicators may signal when the shoulder point is reached or if any parameter goes out of range. After make-up, the software stores the results and can generate reports.
Torque-turn monitoring systems are specialized digital systems used in oil and gas operations to monitor, record, and control the application of torque and the number of turns during the make-up or break-out of threaded connections. These systems are often integrated with power tongs, bucking units, or other make-up equipment to provide real-time feedback and quality control. In an industry where improper torque or turn count can lead to connection failures, leaks, or costly downtime, such monitoring systems have become essential for ensuring connections meet manufacturer specifications and industry standardssuperiorperformance.com. This article delves into the technical aspects of torque-turn monitoring systems, including their key features, practical use cases, specifications, and best practices for operation, with a focus on oilfield tubular connections.
What Are Torque-Turn Monitoring Systems?
A torque-turn monitoring system (also known as a make-up monitoring system or digital torque/turn control system) is a combination of sensors, hardware, and software designed to track the torque applied to a connection and the number of turns of the pipe or tool joint in real time. The system generates a torque vs. turns graph for each connection made up, allowing operators to visualize the make-up process and verify that it falls within acceptable parameters. Modern systems typically include:

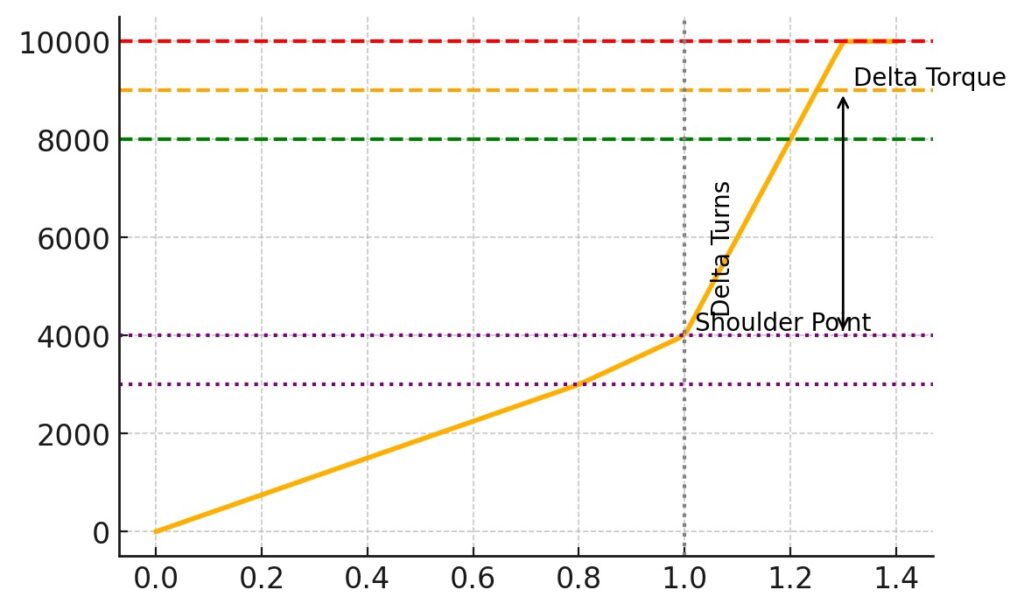

- Example of a torque-turn monitoring graph for a premium connection, with key parameters annotated. The system tracks turns (horizontal axis) and torque (vertical axis) in real time. Min and max torque limits (red and green lines) and shoulder torque range (purple lines) are shown for reference. The “Shoulder Point” marks when the connection’s shoulders first fully engage, after which torque rises steeply. “Delta Turns” (horizontal distance beyond shoulder) and “Delta Torque” (vertical increase after shoulder) are critical parameters the system calculates and displays for acceptance criteria.
Key Features and Capabilities
Modern torque-turn monitoring systems come with a range of advanced features to enhance both precision and usability:
Real-Time Monitoring and Control – The system provides live feedback as the connection is being made. Operators can watch the graphical curve of torque vs. turn on a screen, ensuring the process is proceeding as expectedsuperiorperformance.com. If the graph shows any anomaly (e.g., a sudden spike or an early shoulder), the operator can stop immediately to investigate. Some systems also include automatic control features that will stop or adjust the make-up process automatically once the predetermined criteria are met, preventing over-torque or other issues. For example, an automated control might slow the make-up as it nears the target torque and halt when final torque is achievedgalipequipment.com, thus avoiding overshoot.
Parameter Input and Specification Library – Operators can input pipe and connection parameters in advance. Many systems have a library of connection types (with known torque specs) built-in or allow users to save custom settings. For instance, one can select the casing size, grade, thread type, and the system will automatically load the proper min/max torque values for that connection. This ensures consistency and reduces human error in setting torque targets. Users can also modify or add parameters (e.g., if a new premium connection type is introduced, its torque-turn profile criteria can be entered into the system for reference).
Data Logging and Reporting – All make-up data is recorded and stored. After each connection makeup, the system can generate a torque-turn report that typically includes the graph, final torque achieved, shoulder torque, number of turns, delta turn, slope (thread interference slope), and whether the connection was within the acceptable limits. These reports are crucial for QA/QC documentation and for troubleshooting any issues. They can be saved as PDFs or printed, and are often timestamped with the joint number, pipe serial, etc., to maintain a full history of the assembly. Being able to review results from previous make-ups and overlay graphs is useful for identifying any gradual changes or inconsistencies over a drill stringmccoyglobal.com.
Multiple Graph Overlays – Some advanced systems allow overlaying multiple torque-turn graphs on one plot. This is particularly useful when making up many similar connections (such as a string of casing or drill pipe): it allows the technician to compare the current make-up with previous ones to spot deviations. An abnormal graph becomes immediately evident when superimposed on a cluster of “normal” graphs. This feature can help catch issues with a single connection that might be missed if looking at it in isolation.
Automatic Shoulder Detection and Annotation – The software can automatically identify the shoulder pointon the graph (where the slope changes significantly as the pin and box shoulder surfaces mate). It may mark this point and calculate the “delta turns” (the additional turns after shoulder) and “delta torque” (the increase in torque after the shoulder point) for the connection. These values are then compared to allowable limits for that connection. For example, for certain premium connections, delta turns above a threshold (e.g., more than 0.10–0.12 turns beyond the normal range) would flag the connection as problematic. By automating these calculations, the system aids in quick accept/reject decisions.
Connectivity and Remote Access – Modern units often have options for remote data access. Some systems support real-time cloud data backup and web portals, enabling engineers or third-party inspectors to monitor make-ups remotelysuperiorperformance.com. This can be useful for office-based review of critical operations or for service companies monitoring multiple rigs. Data encryption and uneditable logs ensure the integrity of the recorded data (preventing tampering with the results)superiorperformance.com.
Versatility and Integration – A good torque-turn monitoring system is adaptable to various equipment. It can be used with power tongs, casing running tools (with torque-turn subs), bucking units, or even calibration test benchesmccoyglobal.com. This means the same system can be employed whether on the rig floor making up drill pipe, in a yard assembling bottom-hole assemblies, or in a workshop torque-testing tools. Systems often have modules or modes specific to the application (for example, an interface mode tailored for power tong operation vs. a mode for a bucking unit).
Rugged Hardware – Given the field conditions, the hardware (sensors, connectors, displays) are built rugged. Load cells are typically temperature compensated and sealed. Turn encoders are enclosed to avoid dirt ingress. The display computer might be an industrial tablet or panel PC that is shock-proof and possibly rated for hazardous areas. Some systems mount the display in a control console that the operator can use at a safe distance from the connection being made up.
In summary, torque-turn monitoring systems combine precision instrumentation with intelligent software to give operators full visibility into each connection make-up. They effectively remove the guesswork from what was historically a more manual process (relying on torque gauges and visual turn counts). By ensuring each connection is made up within the specified window of torque and turns, these systems protect against threads being overstressed or left loose.
Practical Use Cases in Oilfield Operations
Torque-turn monitoring systems find use in various stages of oil and gas drilling and production operations:
Drill Pipe and Tool Joint Make-Up – When assembling drill pipe tool joints or making up drill strings, especially for directional drilling, it’s crucial to apply the correct torque. These systems verify that each joint of drill pipe is properly torqued and catches issues like thread galling or shoulder damage early by spotting anomalies in the graph. In many modern rigs, while making up a drill pipe connection with power tongs, a torque-turn monitor (often a portable unit attached to the tong or a built-in system) will ensure the pin and box are connected to spec. This reduces the risk of a connection backing off downhole due to under-torquing or failing due to over-torquing.
Casing and Tubing Running – High-grade casing and premium threaded connections (with metal-to-metal seals and shoulders) absolutely require careful monitoring during make-up. A torque-turn system ensures that each casing connection has a clear shoulder and that final torque is within the recommended band. If a casing connection’s graph shows irregularities (e.g., a spike indicating cross-thread or an excessive turn indicating stripped threads), the system helps the crew identify it immediately and replace that joint before it goes downhole. Many casing running tools (CRTs) incorporate a torque/turn monitoring sub that feeds data to such systemsmccoyglobal.com. This is especially valuable for offshore operations or critical wells where a single connection failure can be extremely costly.

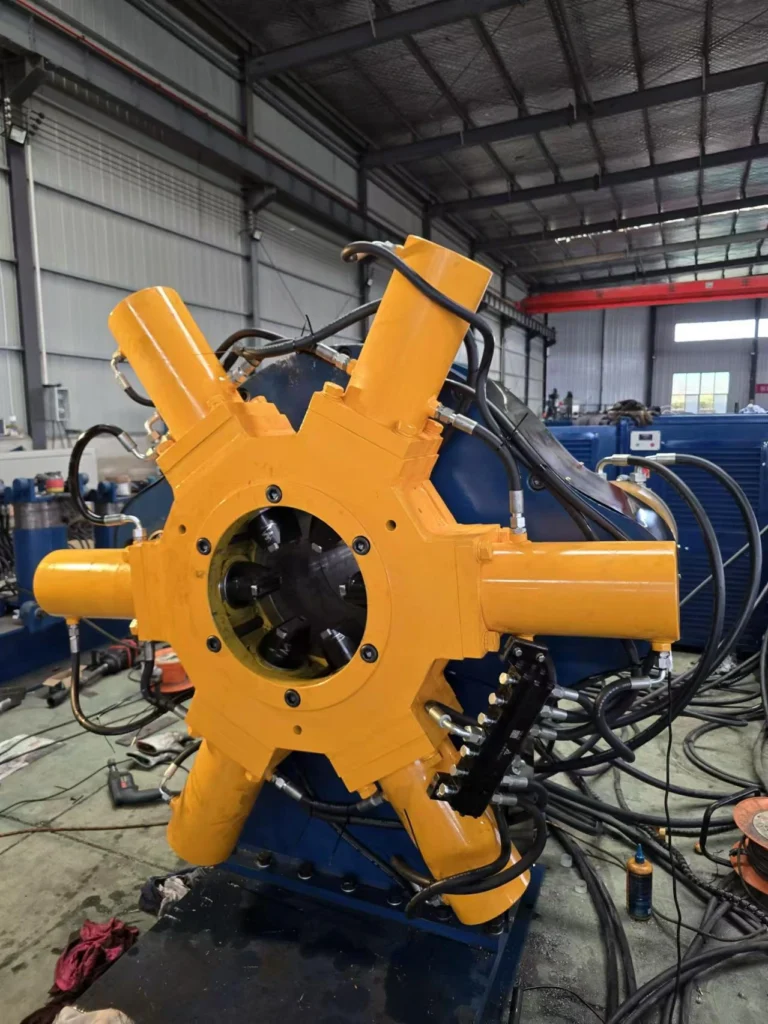

BHA Assembly in Workshops – Bottom-hole assembly (BHA) components like mud motors, stabilizers, drilling jars, heavy-weight drill pipe, etc., are often assembled and disassembled at service company workshops using bucking units. These bucking units are equipped with integrated torque-turn monitoring. The technicians will use the system to make up tools (for example, connecting a motor to a bit box or a drilling jar to a sub) to the precise torque. They also log the make-up graphs as part of the assembly quality record, which can be provided to the operator. This is particularly important for premium connections on drilling tools where the connection might be broken and remade many times over its life – monitoring ensures it’s within tolerance each time and helps detect when a connection is getting worn out (if graphs start to show abnormal behavior after many uses).
Laboratory and Testing Environments – These systems are also used in testing scenarios, such as when qualifying a new threaded connection design. Engineers will use a torque-turn monitoring setup on a test rig to tighten connections to failure or to various torque levels and study the graphs. The detailed data helps in understanding the connection’s behavior (like how the thread interference builds and where yield occurs).
Service and Inspection – When a tool or tubular comes in from the field for inspection (say a drilling motor or a string of drill pipe), after refurbishment the service company will often make up the connections with a monitored system to validate that they can achieve proper make-up. This can catch issues like improperly machined threads or incorrect thread compound application. For instance, if during a post-repair make-up of a drill collar the graph doesn’t show a smooth thread interference and distinct shoulder, it may indicate the pin or box threads were not repaired correctly.
On-Rig Troubleshooting – Some operators use portable torque-turn systems as troubleshooting tools. If they suspect their rig’s tong readings are off, they might bring a calibrated torque-turn monitor and attach it (often via a torque measuring sub or a temporary sensor) to verify the readings. The encrypted and tamper-proof data loggingsuperiorperformance.com is also beneficial in disputing any warranty or performance issues – it provides an objective record of how a connection was made up.
In all these use cases, the overarching benefit is improved connection integrity and traceability. By catching problems early (during the make-up on surface), operators prevent downhole failures. Additionally, the data collected builds a knowledge base – for example, engineers might analyze a series of make-up graphs to determine the optimum thread compound or the effect of different running speeds on a connection’s makeup.
Technical Specifications and Compatibility
While specifics vary by manufacturer, here are some typical technical specifications and capabilities one might find in a torque-turn monitoring system used in oil and gas:
Torque Measurement Range: Systems can typically measure from very low torques (a few hundred ft-lbs) up to very high torques. For example, a system might have load cells that handle up to 100,000 ft-lbf or more, and some bucking unit integrated systems go up to 200,000+ ft-lbf to accommodate large connectionsgalipequipment.com. The accuracy is usually within 1% of reading or better across the range, with regular calibration needed to maintain this.
Turn Measurement Range: They generally track multiple full turns (for tubing/casing connections usually under 10 turns; for certain tool connections it could be more if multiple starts). There is practically no limit on turns since the encoder counts continuously; however, delta-turn measurement (after shoulder) is usually only of interest up to maybe 1 or 2 turns for shouldered connections. The resolution, as noted, can be extremely fine (allowing detection of movements on the order of a few arc-seconds).
Sampling Rate and Data Resolution: High-end systems sample torque and turn data at thousands of points per second. This high resolution ensures even quick events (like a brief slip or a spike) show up on the graph. Data is often stored at slightly lower resolution for the record (to keep file sizes manageable, some systems filter or decimate data once recorded unless an anomaly is detected).
Environmental Ratings: Equipment is built to operate in typical oilfield temperature ranges (e.g., -20°C to +50°C for surface equipment) and humidity. Load cells might have temperature compensation to ±0.5% across their range. Electronics are often placed in enclosures rated IP65 or better to prevent dust and water ingress, allowing outdoor use. Shock and vibration standards (like meeting certain MIL-spec or IEEE spec for vibration) might be cited for the consoles.
Power and Connectivity: Many systems run on standard 110-240V AC power (in a workshop) or might have DC options for rig power. Some portable units can run on battery for a period of time. Data output can include USB for logs, as well as Ethernet or wireless for networking. Modern units may even integrate with rig data systems so that the torque-turn data becomes part of the well’s digital record automatically.
Software Compatibility: The software might run on Windows-based industrial PCs or tablets. Compatibility with analysis programs (exporting data to CSV or specialized formats for further analysis) is often provided. Some systems are now offering cloud connectivity where the data can sync to an online database accessible by the operator company (with appropriate security).
Integration with Control Systems: In advanced setups, the torque-turn monitor isn’t just passive; it actively controls the make-up through a feedback loop. For example, it can send a signal to the tong or bucking unit’s hydraulic control to close a dump valve once final torque is reachedsuperiorperformance.com. Or it might shift a tong from high-speed low-torque mode to high-torque mode at a certain preset torque (e.g., shifting gears when approaching the shoulder, as some procedures recommend). This kind of integration blurs the line between purely monitoring and actually automating the make-up process.
Operational Tips and Best Practices
To get the most out of a torque-turn monitoring system and ensure it provides accurate, useful data, oilfield professionals should consider the following tips:
Regular Calibration: Load cells and encoders should be calibrated regularly against known standards. Over time and heavy use, sensors can drift. A best practice is to calibrate the torque sensor with a certified torque calibrator or test beam at least every few months (or more frequently if critical). Many companies calibrate prior to important jobs and certainly after any incident like overloading a load cell. The system may have an internal calibration check routine – utilize it and keep records. Calibration ensures that the torque values shown on the graph truly reflect the actual applied torquegalipequipment.com.
Verify Data Inputs: Before starting a batch of make-ups, double-check that the correct connection type or parameters are selected. A simple data entry error (like selecting a wrong pipe size or a wrong thread type from the menu) could set wrong acceptance criteria and mislead the operator. Cross-check with the torque-turn spec sheet for that connection. It is wise to have the pipe tally or connection manual at hand and verify the min, optimum, max torque values and allowable turns against what the software has loaded.
Proper Sensor Installation: If using a portable system, ensure the load cell and turn sensor are installed correctly. For example, a clamp-on torque sub must be zeroed and firmly attached, and an encoder wheel might need to be pressed against the rotating part with correct tension. Incorrect installation can cause noisy data or missed counts. Many operational errors trace back to sensors not being affixed properly – e.g., a loose connection in the load cell cable causing a spike on the graph.
Monitor During Make-Up: The operator or technician should actively monitor the graph during the connection make-up, not just at the end. A skilled operator can often interpret the graph in real time – noticing, for instance, a blip in the torque rise that might indicate a problem (like a jump that could mean a thread bind or a tong slip). If something unusual is observed, pause the operation if possible to investigate. It’s easier to address an issue at one or two turns in than to have to break out a fully made connection.
Investigate Anomalies: Not every graph will look perfect, due to various field variables (pipe alignment, etc.). However, any major anomalies should be investigated. If the system flags a high delta-turn, or the graph shape deviates significantly from normal, follow a procedure: stop, break out the connection, inspect threads and shoulders for damage or debrisscribd.comscribd.com. If threads are in good condition, perhaps try re-making the connection (after cleaning and reapplying thread compound appropriately). Sometimes a one-off anomaly can be due to something like excess dope or momentary misalignment and a remake will be fine. If a second attempt also shows an anomaly, that joint or coupling should likely be rejected.
Maintain Equipment: The accuracy of the torque-turn system is only as good as the equipment conditiontenaris.com. Keep the cables, connectors, and sensors in good repair. Hydraulic tongs or bucking units used with the system should themselves be functioning smoothly – for instance, a tong that sticks or a hydraulic motor that surges can cause odd graph shapes not due to the connection but due to the tool. Also ensure any moving parts are properly greased and that the system’s computer or tablet is protected from shock.
Use Proper Thread Compound and Dope Practices: Believe it or not, the thread lubricant (dope) and its application can affect the make-up graph. Too little compound can cause higher friction (and thus higher torque for a given turns), whereas too much can mask the shoulder or alter the slope. Always use the manufacturer’s recommended compound for the connection and apply in the specified amount. Uniform dope coverage leads to a smoother thread interference section on the graph. An operational tip is to also check the dope’s friction factor if known and ensure the torque values used account for it (some premium connections provide different torque values depending on the dope’s friction coefficient).
Train Personnel in Graph Interpretation: The system provides a lot of data, but it’s only valuable if the team knows how to interpret it. Training sessions for rig crews or shop technicians on reading torque-turn graphs can greatly enhance the effective use of the system. They should learn what a “good” graph looks like for the connections they work with: e.g., smooth rise, distinct shoulder at X torque, and final torque in range with Y delta-turn. They should also learn to recognize patterns of common issues: for example, a graph that spikes very early (indicating a cross-thread or obstruction) or one that “flattens out” at the top (indicating possible yielding of the connection)scribd.com. Recognizing these patterns enables quicker response.
Document and Learn from Every Make-Up: Over time, the collected archive of torque-turn records can be analyzed to improve operations. Engineers can look at the data for trends, such as “do connections made up at higher speed have any difference in graph shape compared to slow make-ups?” or “did the change in rig floor procedures last month reduce the incidence of high delta-torque events?” These lessons can drive continuous improvement. Additionally, having well-documented make-up graphs can be vital for any later investigations (for instance, if a connection fails in service, one of the first questions is: was it made up correctly? The recorded graph will answer that).
In conclusion, torque-turn monitoring systems are a cornerstone of quality assurance for threaded connections in the oilfield. They marry precise measurement technology with real-world operational needs, giving professionals the insight required to make every connection right the first time. By incorporating these systems and following best practices, companies can significantly reduce connection-related issues and enhance the safety and reliability of their drilling and production operationsoffshore-mag.com. Whether it’s on the rig floor ensuring a drill pipe stands is made up correctly, or in a manufacturing shop assembling tools, torque-turn monitoring brings science and consistency to what used to be an art. As the oil and gas industry continues to push for fewer failures and more data-driven operations, these systems will only grow in importance, with future innovations likely focusing on even smarter interpretation (perhaps AI anomaly detection) and integration into wider digital rig systems.
Key Features and Capabilities
Modern torque-turn monitoring systems come with a range of advanced features to enhance both precision and usability:
Real-Time Monitoring and Control – The system provides live feedback as the connection is being made. Operators can watch the graphical curve of torque vs. turn on a screen, ensuring the process is proceeding as expectedsuperiorperformance.com. If the graph shows any anomaly (e.g., a sudden spike or an early shoulder), the operator can stop immediately to investigate. Some systems also include automatic control features that will stop or adjust the make-up process automatically once the predetermined criteria are met, preventing over-torque or other issues. For example, an automated control might slow the make-up as it nears the target torque and halt when final torque is achievedgalipequipment.com, thus avoiding overshoot.
Parameter Input and Specification Library – Operators can input pipe and connection parameters in advance. Many systems have a library of connection types (with known torque specs) built-in or allow users to save custom settings. For instance, one can select the casing size, grade, thread type, and the system will automatically load the proper min/max torque values for that connection. This ensures consistency and reduces human error in setting torque targets. Users can also modify or add parameters (e.g., if a new premium connection type is introduced, its torque-turn profile criteria can be entered into the system for reference).
Data Logging and Reporting – All make-up data is recorded and stored. After each connection makeup, the system can generate a torque-turn report that typically includes the graph, final torque achieved, shoulder torque, number of turns, delta turn, slope (thread interference slope), and whether the connection was within the acceptable limits. These reports are crucial for QA/QC documentation and for troubleshooting any issues. They can be saved as PDFs or printed, and are often timestamped with the joint number, pipe serial, etc., to maintain a full history of the assembly. Being able to review results from previous make-ups and overlay graphs is useful for identifying any gradual changes or inconsistencies over a drill stringmccoyglobal.com.
Multiple Graph Overlays – Some advanced systems allow overlaying multiple torque-turn graphs on one plot. This is particularly useful when making up many similar connections (such as a string of casing or drill pipe): it allows the technician to compare the current make-up with previous ones to spot deviations. An abnormal graph becomes immediately evident when superimposed on a cluster of “normal” graphs. This feature can help catch issues with a single connection that might be missed if looking at it in isolation.
Automatic Shoulder Detection and Annotation – The software can automatically identify the shoulder pointon the graph (where the slope changes significantly as the pin and box shoulder surfaces mate). It may mark this point and calculate the “delta turns” (the additional turns after shoulder) and “delta torque” (the increase in torque after the shoulder point) for the connection. These values are then compared to allowable limits for that connection. For example, for certain premium connections, delta turns above a threshold (e.g., more than 0.10–0.12 turns beyond the normal range) would flag the connection as problematic. By automating these calculations, the system aids in quick accept/reject decisions.
Connectivity and Remote Access – Modern units often have options for remote data access. Some systems support real-time cloud data backup and web portals, enabling engineers or third-party inspectors to monitor make-ups remotelysuperiorperformance.com. This can be useful for office-based review of critical operations or for service companies monitoring multiple rigs. Data encryption and uneditable logs ensure the integrity of the recorded data (preventing tampering with the results)superiorperformance.com.
Versatility and Integration – A good torque-turn monitoring system is adaptable to various equipment. It can be used with power tongs, casing running tools (with torque-turn subs), bucking units, or even calibration test benchesmccoyglobal.com. This means the same system can be employed whether on the rig floor making up drill pipe, in a yard assembling bottom-hole assemblies, or in a workshop torque-testing tools. Systems often have modules or modes specific to the application (for example, an interface mode tailored for power tong operation vs. a mode for a bucking unit).
Rugged Hardware – Given the field conditions, the hardware (sensors, connectors, displays) are built rugged. Load cells are typically temperature compensated and sealed. Turn encoders are enclosed to avoid dirt ingress. The display computer might be an industrial tablet or panel PC that is shock-proof and possibly rated for hazardous areas. Some systems mount the display in a control console that the operator can use at a safe distance from the connection being made up.
In summary, torque-turn monitoring systems combine precision instrumentation with intelligent software to give operators full visibility into each connection make-up. They effectively remove the guesswork from what was historically a more manual process (relying on torque gauges and visual turn counts). By ensuring each connection is made up within the specified window of torque and turns, these systems protect against threads being overstressed or left loose.
Practical Use Cases in Oilfield Operations
Torque-turn monitoring systems find use in various stages of oil and gas drilling and production operations:
Drill Pipe and Tool Joint Make-Up – When assembling drill pipe tool joints or making up drill strings, especially for directional drilling, it’s crucial to apply the correct torque. These systems verify that each joint of drill pipe is properly torqued and catches issues like thread galling or shoulder damage early by spotting anomalies in the graph. In many modern rigs, while making up a drill pipe connection with power tongs, a torque-turn monitor (often a portable unit attached to the tong or a built-in system) will ensure the pin and box are connected to spec. This reduces the risk of a connection backing off downhole due to under-torquing or failing due to over-torquing.
Casing and Tubing Running – High-grade casing and premium threaded connections (with metal-to-metal seals and shoulders) absolutely require careful monitoring during make-up. A torque-turn system ensures that each casing connection has a clear shoulder and that final torque is within the recommended band. If a casing connection’s graph shows irregularities (e.g., a spike indicating cross-thread or an excessive turn indicating stripped threads), the system helps the crew identify it immediately and replace that joint before it goes downhole. Many casing running tools (CRTs) incorporate a torque/turn monitoring sub that feeds data to such systemsmccoyglobal.com. This is especially valuable for offshore operations or critical wells where a single connection failure can be extremely costly.
BHA Assembly in Workshops – Bottom-hole assembly (BHA) components like mud motors, stabilizers, drilling jars, heavy-weight drill pipe, etc., are often assembled and disassembled at service company workshops using bucking units. These bucking units are equipped with integrated torque-turn monitoring. The technicians will use the system to make up tools (for example, connecting a motor to a bit box or a drilling jar to a sub) to the precise torque. They also log the make-up graphs as part of the assembly quality record, which can be provided to the operator. This is particularly important for premium connections on drilling tools where the connection might be broken and remade many times over its life – monitoring ensures it’s within tolerance each time and helps detect when a connection is getting worn out (if graphs start to show abnormal behavior after many uses).
Laboratory and Testing Environments – These systems are also used in testing scenarios, such as when qualifying a new threaded connection design. Engineers will use a torque-turn monitoring setup on a test rig to tighten connections to failure or to various torque levels and study the graphs. The detailed data helps in understanding the connection’s behavior (like how the thread interference builds and where yield occurs).
Service and Inspection – When a tool or tubular comes in from the field for inspection (say a drilling motor or a string of drill pipe), after refurbishment the service company will often make up the connections with a monitored system to validate that they can achieve proper make-up. This can catch issues like improperly machined threads or incorrect thread compound application. For instance, if during a post-repair make-up of a drill collar the graph doesn’t show a smooth thread interference and distinct shoulder, it may indicate the pin or box threads were not repaired correctly.
On-Rig Troubleshooting – Some operators use portable torque-turn systems as troubleshooting tools. If they suspect their rig’s tong readings are off, they might bring a calibrated torque-turn monitor and attach it (often via a torque measuring sub or a temporary sensor) to verify the readings. The encrypted and tamper-proof data loggingsuperiorperformance.com is also beneficial in disputing any warranty or performance issues – it provides an objective record of how a connection was made up.
In all these use cases, the overarching benefit is improved connection integrity and traceability. By catching problems early (during the make-up on surface), operators prevent downhole failures. Additionally, the data collected builds a knowledge base – for example, engineers might analyze a series of make-up graphs to determine the optimum thread compound or the effect of different running speeds on a connection’s makeup.
Technical Specifications and Compatibility
While specifics vary by manufacturer, here are some typical technical specifications and capabilities one might find in a torque-turn monitoring system used in oil and gas:
Torque Measurement Range: Systems can typically measure from very low torques (a few hundred ft-lbs) up to very high torques. For example, a system might have load cells that handle up to 100,000 ft-lbf or more, and some bucking unit integrated systems go up to 200,000+ ft-lbf to accommodate large connectionsgalipequipment.com. The accuracy is usually within 1% of reading or better across the range, with regular calibration needed to maintain this.
Turn Measurement Range: They generally track multiple full turns (for tubing/casing connections usually under 10 turns; for certain tool connections it could be more if multiple starts). There is practically no limit on turns since the encoder counts continuously; however, delta-turn measurement (after shoulder) is usually only of interest up to maybe 1 or 2 turns for shouldered connections. The resolution, as noted, can be extremely fine (allowing detection of movements on the order of a few arc-seconds).
Sampling Rate and Data Resolution: High-end systems sample torque and turn data at thousands of points per second. This high resolution ensures even quick events (like a brief slip or a spike) show up on the graph. Data is often stored at slightly lower resolution for the record (to keep file sizes manageable, some systems filter or decimate data once recorded unless an anomaly is detected).
Environmental Ratings: Equipment is built to operate in typical oilfield temperature ranges (e.g., -20°C to +50°C for surface equipment) and humidity. Load cells might have temperature compensation to ±0.5% across their range. Electronics are often placed in enclosures rated IP65 or better to prevent dust and water ingress, allowing outdoor use. Shock and vibration standards (like meeting certain MIL-spec or IEEE spec for vibration) might be cited for the consoles.
Power and Connectivity: Many systems run on standard 110-240V AC power (in a workshop) or might have DC options for rig power. Some portable units can run on battery for a period of time. Data output can include USB for logs, as well as Ethernet or wireless for networking. Modern units may even integrate with rig data systems so that the torque-turn data becomes part of the well’s digital record automatically.
Software Compatibility: The software might run on Windows-based industrial PCs or tablets. Compatibility with analysis programs (exporting data to CSV or specialized formats for further analysis) is often provided. Some systems are now offering cloud connectivity where the data can sync to an online database accessible by the operator company (with appropriate security).
Integration with Control Systems: In advanced setups, the torque-turn monitor isn’t just passive; it actively controls the make-up through a feedback loop. For example, it can send a signal to the tong or bucking unit’s hydraulic control to close a dump valve once final torque is reachedsuperiorperformance.com. Or it might shift a tong from high-speed low-torque mode to high-torque mode at a certain preset torque (e.g., shifting gears when approaching the shoulder, as some procedures recommend). This kind of integration blurs the line between purely monitoring and actually automating the make-up process.
Operational Tips and Best Practices
To get the most out of a torque-turn monitoring system and ensure it provides accurate, useful data, oilfield professionals should consider the following tips:
Regular Calibration: Load cells and encoders should be calibrated regularly against known standards. Over time and heavy use, sensors can drift. A best practice is to calibrate the torque sensor with a certified torque calibrator or test beam at least every few months (or more frequently if critical). Many companies calibrate prior to important jobs and certainly after any incident like overloading a load cell. The system may have an internal calibration check routine – utilize it and keep records. Calibration ensures that the torque values shown on the graph truly reflect the actual applied torquegalipequipment.com.
Verify Data Inputs: Before starting a batch of make-ups, double-check that the correct connection type or parameters are selected. A simple data entry error (like selecting a wrong pipe size or a wrong thread type from the menu) could set wrong acceptance criteria and mislead the operator. Cross-check with the torque-turn spec sheet for that connection. It is wise to have the pipe tally or connection manual at hand and verify the min, optimum, max torque values and allowable turns against what the software has loaded.
Proper Sensor Installation: If using a portable system, ensure the load cell and turn sensor are installed correctly. For example, a clamp-on torque sub must be zeroed and firmly attached, and an encoder wheel might need to be pressed against the rotating part with correct tension. Incorrect installation can cause noisy data or missed counts. Many operational errors trace back to sensors not being affixed properly – e.g., a loose connection in the load cell cable causing a spike on the graph.
Monitor During Make-Up: The operator or technician should actively monitor the graph during the connection make-up, not just at the end. A skilled operator can often interpret the graph in real time – noticing, for instance, a blip in the torque rise that might indicate a problem (like a jump that could mean a thread bind or a tong slip). If something unusual is observed, pause the operation if possible to investigate. It’s easier to address an issue at one or two turns in than to have to break out a fully made connection.
Investigate Anomalies: Not every graph will look perfect, due to various field variables (pipe alignment, etc.). However, any major anomalies should be investigated. If the system flags a high delta-turn, or the graph shape deviates significantly from normal, follow a procedure: stop, break out the connection, inspect threads and shoulders for damage or debrisscribd.comscribd.com. If threads are in good condition, perhaps try re-making the connection (after cleaning and reapplying thread compound appropriately). Sometimes a one-off anomaly can be due to something like excess dope or momentary misalignment and a remake will be fine. If a second attempt also shows an anomaly, that joint or coupling should likely be rejected.
Maintain Equipment: The accuracy of the torque-turn system is only as good as the equipment conditiontenaris.com. Keep the cables, connectors, and sensors in good repair. Hydraulic tongs or bucking units used with the system should themselves be functioning smoothly – for instance, a tong that sticks or a hydraulic motor that surges can cause odd graph shapes not due to the connection but due to the tool. Also ensure any moving parts are properly greased and that the system’s computer or tablet is protected from shock.
Use Proper Thread Compound and Dope Practices: Believe it or not, the thread lubricant (dope) and its application can affect the make-up graph. Too little compound can cause higher friction (and thus higher torque for a given turns), whereas too much can mask the shoulder or alter the slope. Always use the manufacturer’s recommended compound for the connection and apply in the specified amount. Uniform dope coverage leads to a smoother thread interference section on the graph. An operational tip is to also check the dope’s friction factor if known and ensure the torque values used account for it (some premium connections provide different torque values depending on the dope’s friction coefficient).
Train Personnel in Graph Interpretation: The system provides a lot of data, but it’s only valuable if the team knows how to interpret it. Training sessions for rig crews or shop technicians on reading torque-turn graphs can greatly enhance the effective use of the system. They should learn what a “good” graph looks like for the connections they work with: e.g., smooth rise, distinct shoulder at X torque, and final torque in range with Y delta-turn. They should also learn to recognize patterns of common issues: for example, a graph that spikes very early (indicating a cross-thread or obstruction) or one that “flattens out” at the top (indicating possible yielding of the connection)scribd.com. Recognizing these patterns enables quicker response.
Document and Learn from Every Make-Up: Over time, the collected archive of torque-turn records can be analyzed to improve operations. Engineers can look at the data for trends, such as “do connections made up at higher speed have any difference in graph shape compared to slow make-ups?” or “did the change in rig floor procedures last month reduce the incidence of high delta-torque events?” These lessons can drive continuous improvement. Additionally, having well-documented make-up graphs can be vital for any later investigations (for instance, if a connection fails in service, one of the first questions is: was it made up correctly? The recorded graph will answer that).
In conclusion, torque-turn monitoring systems are a cornerstone of quality assurance for threaded connections in the oilfield. They marry precise measurement technology with real-world operational needs, giving professionals the insight required to make every connection right the first time. By incorporating these systems and following best practices, companies can significantly reduce connection-related issues and enhance the safety and reliability of their drilling and production operationsoffshore-mag.com. Whether it’s on the rig floor ensuring a drill pipe stands is made up correctly, or in a manufacturing shop assembling tools, torque-turn monitoring brings science and consistency to what used to be an art. As the oil and gas industry continues to push for fewer failures and more data-driven operations, these systems will only grow in importance, with future innovations likely focusing on even smarter interpretation (perhaps AI anomaly detection) and integration into wider digital rig systems.
