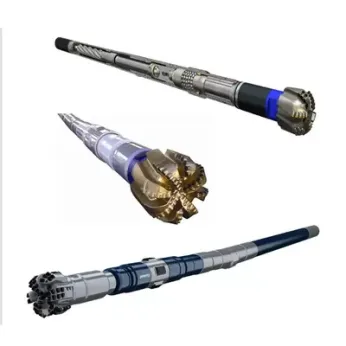

Mud Motors HDD

Mud motors HDD stand at the forefront of horizontal directional drilling operations, powering through earth and rock to pave the way for infrastructure development. Their robustness and efficiency are paramount, yet they face significant challenges from sedimentation and sand ingression. Understanding and addressing these issues are key to ensuring the longevity and performance of mud motors HDD.

Preventing Sedimentation in Mud Motors HDD

For small drilling operations utilizing mud motors, sedimentation poses a significant threat after extensive use—typically beyond 36 hours of operation or after drilling over 80 meters. Sedimentation, primarily from rock debris accumulation, can lead to increased wear and tear on mud motors, diminishing their efficiency and lifespan.

Strategies for Sedimentation Prevention

To combat sedimentation, a proactive approach involves the removal and reinsertion of drill rods to replace old mud, which is crucial for protecting mud motors from increased friction and the risk of debris infiltration. Such preventive measures are essential for maintaining the operational integrity of mud motors HDD, ensuring that they continue to function at peak efficiency.

Sand Ingression: A Persistent Challenge for Mud Motors HDD

Sand ingression stands as a formidable challenge in the management of mud motors. The forceful expulsion of mud during drill rod unloading, triggered by any obstruction that increases borehole pressure, can lead to significant operational issues, including:

  1. Minor Sand Ingression with Large Particles: This scenario often results in high pump pressure and noticeable fluctuations, necessitating immediate intervention. Large rock particles pose a direct threat to the rotor and rubber elements of mud motors HDD, potentially leading to system failure and necessitating factory repairs.

  2. The Inefficacy of Mud Flushing Alone: While mud flushing aims to expel large rock particles from the system, it typically fails to prevent damage to the rotors and rubber parts of mud motors. This process, though it may gradually remove the particles, often decreases the performance and longevity of the motors.

  3. The Risks of Self-Disassembly: Mud motors are intricate devices that require professional handling for repairs. Attempts to disassemble these units without the proper expertise and tools can lead to exacerbated issues and irreparable damage, underscoring the need for expert intervention.


Mud motors HDD are indispensable to the success of horizontal directional drilling operations. Their performance is heavily influenced by the meticulous execution of mud circulation, hole cleaning, drill rod penetration monitoring, and measures to prevent sedimentation and manage sand ingression. Implementing these practices ensures the efficiency and longevity of mud motors HDD, contributing to successful drilling operations. Through diligent care and maintenance, operators can overcome the challenges posed by sedimentation and sand ingression, safeguarding their investment in mud motors HDD and ensuring their operational success.

Operators and drilling teams must prioritize the health and maintenance of their mud motors HDD, recognizing that these proactive measures not only extend the life of their equipment but also enhance operational efficiency. As the industry continues to evolve, the emphasis on maintaining mud motors HDD through these practices will remain a cornerstone of successful horizontal directional drilling operations.


Q: How often should mud in mud motors be replaced to prevent sedimentation? A: Replacement should be considered after more than 36 hours of operation or after drilling over 80 meters, to prevent sedimentation and maintain efficiency.

Q: What are the major consequences of sand ingression in mud motors ? A: Sand ingression can cause high pump pressure, damage to rotors and rubber elements, and ultimately, system failure if not addressed promptly.

Q: Why is professional care crucial for mud motors maintenance? A: Due to their complexity, mud motors HDD require expert handling for repairs and maintenance to prevent further damage and ensure optimal performance.

This approach to maintaining mud motors HDD in drilling operations underscores the importance of understanding and addressing the challenges faced by these crucial components, ensuring their efficiency and longevity in the demanding world of horizontal directional drilling.
